型号
|
组件尺寸
(mm)
|
滑块尺寸
(mm)
|
滑轨尺寸
(mm)
|
|
H
|
H1
|
N
|
W
|
B
|
B1
|
C
|
L1
|
L
|
G
|
Gn
|
M×l
|
H2
|
WR
|
HR
|
D
|
h
|
d
|
P
|
E
|
|
MGN 7C
|
8
|
1.5
|
5
|
17
|
12
|
2.5
|
8
|
13.5
|
22.5
|
-
|
Ø1.2
|
M2×2.5
|
1.5
|
7
|
4.8
|
4.2
|
2.3
|
2.4
|
15
|
5
|
|
MGN 7H
|
13
|
21.8
|
30.8
|
|
MGN 9C
|
10
|
2
|
5.5
|
20
|
15
|
2.5
|
10
|
18.9
|
28.9
|
-
|
Ø1.2
|
M3×3
|
1.8
|
9
|
6.5
|
6
|
3.5
|
3.5
|
20
|
7.5
|
|
MGN 9H
|
16
|
29.9
|
39.9
|
|
MGN 12C
|
13
|
3
|
7.5
|
27
|
20
|
3.5
|
15
|
21.7
|
34.7
|
-
|
Ø1.4
|
M3×3.5
|
2.5
|
12
|
8
|
6
|
4.5
|
3.5
|
25
|
10
|
|
MGN 12H
|
20
|
32.4
|
45.4
|
|
MGN 15C
|
16
|
4
|
8.5
|
32
|
25
|
3.5
|
20
|
26.7
|
42.1
|
4.5
|
M3
|
M3×4
|
3
|
15
|
10
|
6
|
4.5
|
3.5
|
40
|
15
|
|
MGN 15H
|
25
|
43.4
|
58.8
|
|
|
|
|
型号
|
滑轨的
固定螺栓尺寸
(mm)
|
基本动
额定负荷
C(kN)
|
基本静
额定负荷
C0(kN)
|
容许静力矩
|
重量
|
|
MO
(kN-m)
|
MX
(kN-m)
|
MY
(kN-m))
|
滑块
(g)
|
滑轨
(kg/m)
|
|
MGN 7C
|
M2×6
|
100
|
127
|
0.48
|
0.29
|
0.29
|
10
|
0.22
|
|
MGN 7H
|
140
|
200
|
0.78
|
0.49
|
0.40
|
15
|
|
MGN 9C
|
M3×8
|
190
|
260
|
1.2
|
0.75
|
0.75
|
16
|
0.38
|
|
MGN 9H
|
260
|
410
|
2
|
1.9
|
1.9
|
26
|
|
MGN 12C
|
M3×8
|
290
|
400
|
2.6
|
1.4
|
1.4
|
34
|
0.65
|
|
MGN 12H
|
380
|
600
|
3.9
|
3.7
|
3.7
|
5.4
|
|
MGN 15C
|
M3×10
|
470
|
570
|
4.6
|
2.2
|
2.2
|
59
|
1.06
|
|
MGN 15H
|
650
|
930
|
7.5
|
5.9
|
5.9
|
92
|
|
|

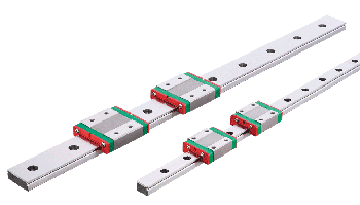

台湾HIWIN直线导轨 MGN标准微型导轨
